جزئیات محصول:
|
| OD: | 6-300mm | Length: | 1-12m |
|---|---|---|---|
| Surface: | Black and Bright | type: | Round Bar |
| Condition: | Hot Rolled | ||
| برجسته کردن: | ss round bars,stainless steel round rod,stainless steel round rod |
||

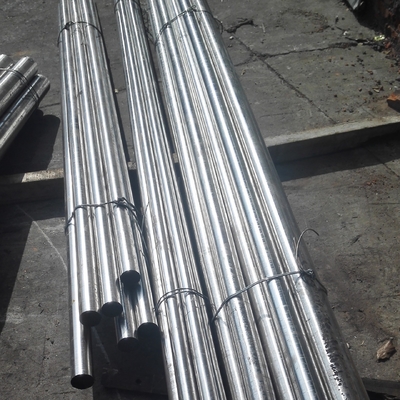

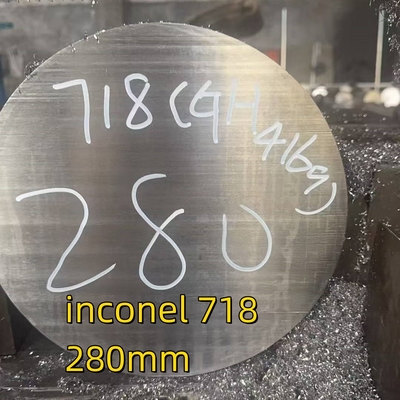

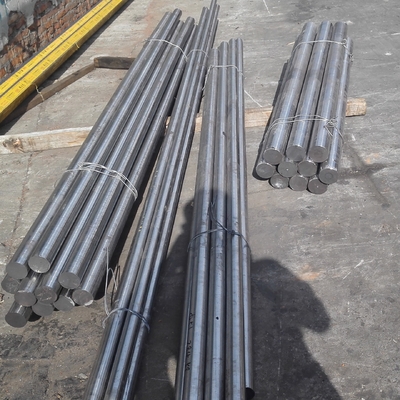

Inconel 718 Round Bar UNS N07718 DIN W. Nr. 2.4668
Product Details:
Inconel 718
Equivalent designations
UNS N07718
DIN W. Nr. 2.4668
| Form | ASTM |
| Rod, bar and forging | B 637 |
| Plate, sheet and strip | B 670, B 906 |
| Seamless pipe and tube | B 983 |
Chemical composition
| % | Ni | Fe | Cr | Mo | C | Mn | Si | P | S | Co | Nb+Ta | Ti | Al | Cu | B |
| min | 50.0 | balance | 17.0 | 2.80 | 4.75 | 0.65 | 0.20 | ||||||||
| max | 55.0 | 21.0 | 3.30 | 0.08 | 0.35 | 0.35 | 0.015 | 0.015 | 1.00 | 5.50 | 1.15 | 0.80 | 0.30 | 0.006 |
Physical properties
| Density | 8.23 g/cm3 |
| Melting range | 1260-1335℃ |
Features: Inconel 718 is an age-hardenable nickel-chromium alloy that combines corrosion resistance with high strength and good fabricability. It has high creep-rupture strength at temperatures up to 700℃. Its excellent relaxation resistance contributes to its application in springs.
Applications: Gas turbine engines, rocket motors, nuclear reactors and spacecraft.
Other nickel base alloys, we have:
Inconel 600 Inconel 601 Inconel 617 Inconel 625LCF Inconel 686
Inconel 690 Inconel 718 Inconel 725 Inconel X-750
Hastelloy C-276 Hastelloy C Hastelloy C-22 Hastelloy C-2000
Hastelloy G Hastelloy G-30 Hastelloy B Hastelloy B-2
Hastelloy B-3
Monel 400 Monel 401 Monel 404 Monel R405 Monel K-500
Nickel 200 Nickel 201 Nickel 205
Nimonic 80A Nimonic 90 Nimonic 105 Nimonic 115 Nimonic 901
Udimet 188 Udimet 720 Udimet R41 Udimet 300
You can visit our produce showcase to view items from the above materials.
About us :
1.we are powerful manufacturer audited by world top inspection company SGS,BV ,ISO and TUV.
2. our products have been exported to more than 20 countries and regions.our quality and fame can be assured.
3.We offered the best price based on best quality.
4.we own the most modern equipment and production line.
